Ford Transit 2.2 TDCi Diesel Timing Chain Kit with Sprockets

Name: Ford Transit 2.2 TDCi Diesel Timing Chain Kit with Sprockets
Brand: Pro Engine Parts Direct
SKU: CYFFEPD101
Price: 88.65 USD
Availability: InStock

$88.65 USD

~~$113.99 USD~~ $88.65 USD

Sale Sold out

Shipping calculated at checkout.

6 Months Manufacturer Warranty

Product Description

This timing chain kit includes sprockets and is suitable for specified 2.2L TDCi diesel applications across the Ford Transit range. Compatible vehicles listed include Transit Bus, Van and Platform/Chassis models from 2006 to 2018, as well as selected Transit Custom and Tourneo Custom models from 2012 to 2016. Engine outputs range from 85 to 155 HP, depending on the model and production year.

The compatibility list also includes selected Citroën Jumper 2.2 HDi, Fiat Ducato 2.2 Multijet and Peugeot Boxer 2.2 HDi applications. Fitment varies by vehicle type, engine output and production date, so check the supplied compatibility information before ordering.

OE Numbers

0816.H4, 96 774 277 80, 9677427780, 9659438580

Interchange Part Numbers

752033, 752090, SKCF013, TCK130, 32166, FT41917, LKTC130, OTK030067, OTK031067, 341500000510, 33 10 1337, 50 10 4077, 421819, 428968, V25-10006, 07117, 58354, TCK200, TCK327, PTA114-0144, 909055, KCK0605, 711465, 03.89080K, KCA074, 559 0193 30, 21-0460, KDK-0605, KJK0605, KCD074, WG1910046, WG2033098, WG2112096, 104077, 172447, TK08-1075, KCSPA013, TCK-0037, 21-0460, KHC 032M, 127-14039K, 40-1132FK, IMX VKML 8410, P752033, P752090, 30RV006, 1389T2552, 580126, WG1143239, WG1488334, WG1779986, CK5126, SKTCK-22440377, T407117, T458354, ATCK200, ATCK327, TC2360FK, BSG 30-109-007, KCC074

Items Included

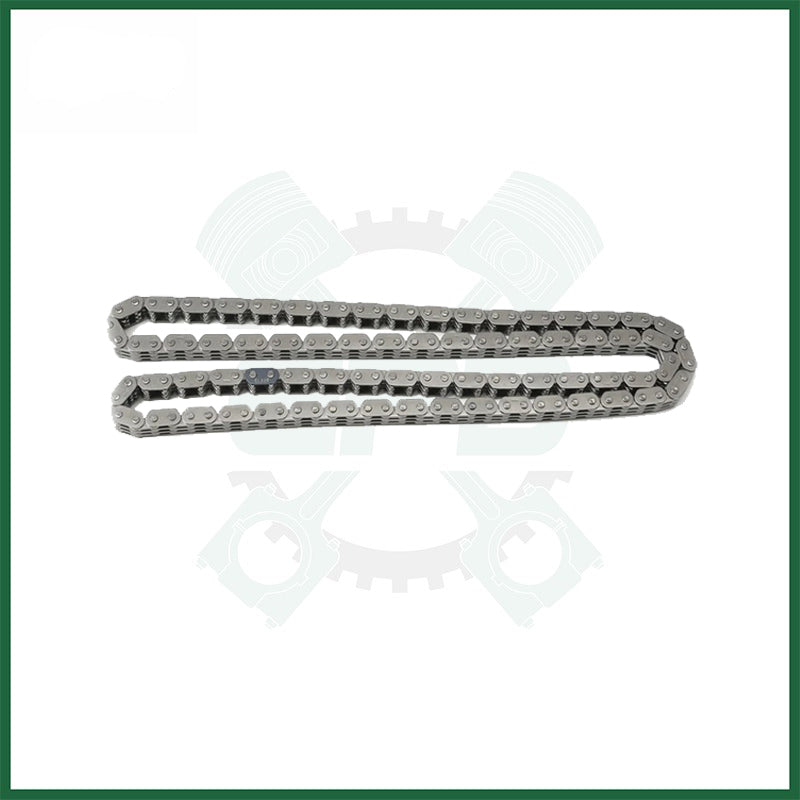

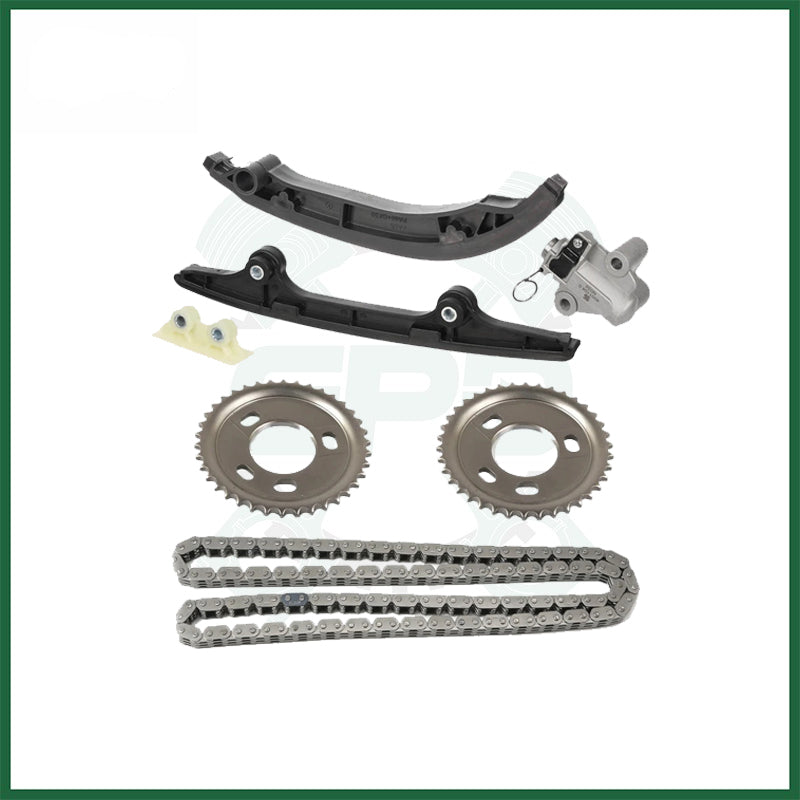

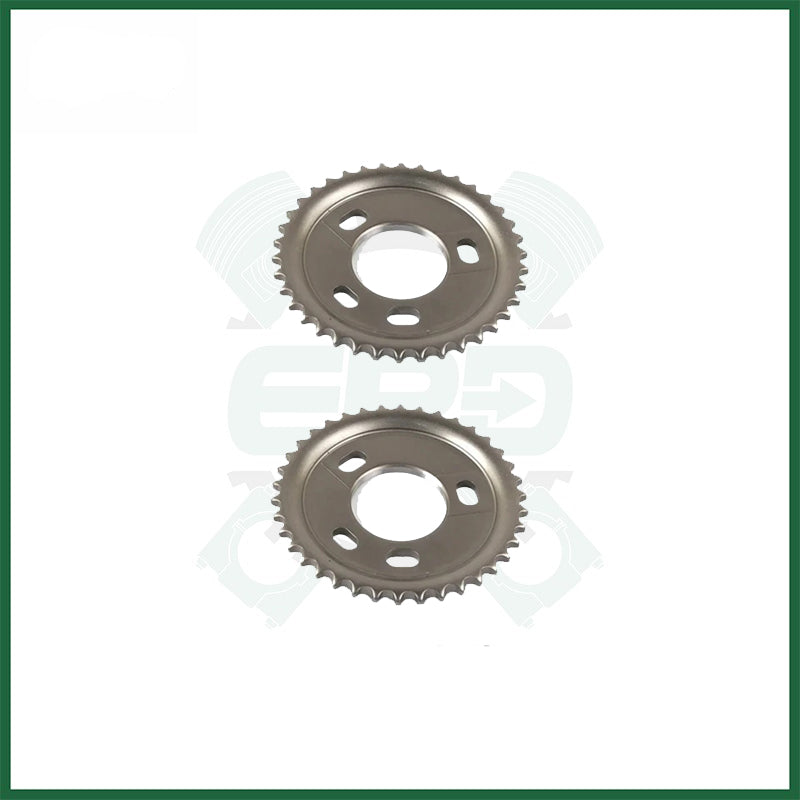

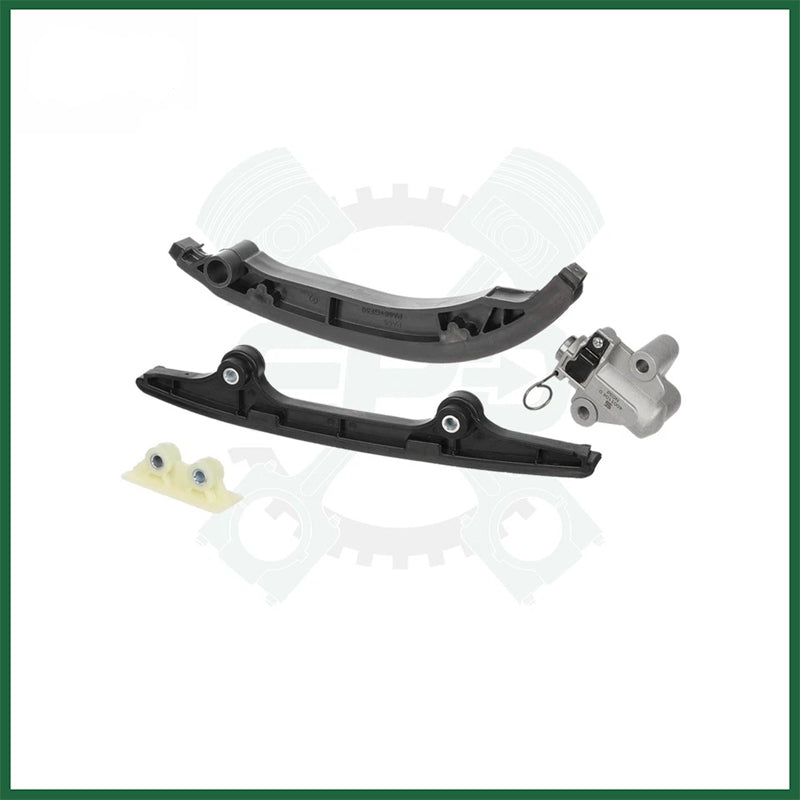

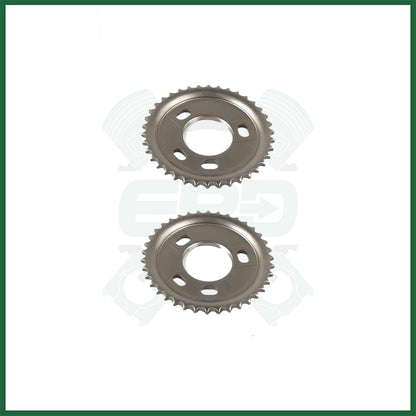

Timing Chain Kit with Sprockets - FD049NG4

View full details

Compatibility

CITROËN
JUMPER Bus
TYPE	CONSTRUCTION YEAR	KW	HP	CC
2.2 HDi 100	from 04.2006	74	101	2198
2.2 HDi 110	from 07.2011	81	110	2198
2.2 HDi 120	from 04.2006	88	120	2198
2.2 HDi 130	from 07.2011	96	130	2198
2.2 HDi 150	from 07.2011	110	150	2198
JUMPER Platform/Chassis
2.2 HDi 100	from 04.2006	74	101	2198
2.2 HDi 110	from 07.2011	81	110	2198
2.2 HDi 120	from 04.2006	88	120	2198
2.2 HDi 130	from 07.2011	96	130	2198
2.2 HDi 150	from 07.2011	110	150	2198
JUMPER Van
2.2 HDi 100	04.2006 - 12.2012	74	101	2198
2.2 HDi 110	from 07.2011	81	110	2198
2.2 HDi 120	from 04.2006	88	120	2198
2.2 HDi 130	from 07.2011	96	130	2198
2.2 HDi 150	from 07.2011	110	150	2198
FIAT
DUCATO Bus (250_)
TYPE	CONSTRUCTION YEAR	KW	HP	CC
100 Multijet 2,2 D	07.2006 - 05.2011	74	100	2198
DUCATO Platform/Chassis (250_)
100 Multijet 2,2 D	from 07.2006	74	100	2198
DUCATO Van (250_)
100 Multijet 2,2 D	from 07.2006	74	100	2198
Ford
TOURNEO CUSTOM V362 Bus (F3)
TYPE	CONSTRUCTION YEAR	KW	HP	CC
2.2 TDCi	04.2012 - 12.2015	74	100	2198
2.2 TDCi	04.2012 - 12.2015	92	125	2198
2.2 TDCi	04.2012 - 12.2015	114	155	2198
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
2.2 TDCi	04.2006 - 08.2014	63	85	2198
2.2 TDCi	04.2006 - 08.2014	81	110	2198
2.2 TDCi	04.2006 - 08.2014	96	130	2198
2.2 TDCi	10.2007 - 08.2014	103	140	2198
2.2 TDCi	10.2008 - 08.2014	85	115	2198
2.2 TDCi	10.2011 - 08.2014	74	100	2198
2.2 TDCi	10.2011 - 08.2014	92	125	2198
TRANSIT CUSTOM V362 Bus (F3)
2.2 TDCi	04.2012 - 12.2015	74	100	2198
2.2 TDCi	04.2012 - 12.2015	92	125	2198
2.2 TDCi	04.2012 - 12.2015	114	155	2198
TRANSIT CUSTOM V362 Van (FY, FZ)
2.2 TDCi	from 09.2012	74	100	2198
2.2 TDCi	09.2012 - 04.2016	92	125	2198
2.2 TDCi	from 09.2012	114	155	2198
TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)
2.2 TDCi	04.2006 - 08.2014	63	85	2198
2.2 TDCi	04.2006 - 08.2014	81	110	2198
2.2 TDCi	04.2006 - 08.2014	96	130	2198
2.2 TDCi	10.2007 - 09.2011	103	140	2198
2.2 TDCi	10.2008 - 08.2014	85	115	2198
2.2 TDCi	10.2011 - 08.2014	74	100	2198
2.2 TDCi	10.2011 - 08.2014	92	125	2198
2.2 TDCi 4x4	10.2011 - 08.2014	92	125	2198
TRANSIT TOURNEO Bus
2.2 TDCi	07.2006 - 08.2014	81	110	2198
2.2 TDCi	07.2006 - 08.2014	96	131	2198
2.2 TDCi	10.2007 - 08.2014	103	140	2198
2.2 TDCi	10.2008 - 08.2014	85	115	2198
TRANSIT V363 Bus (FAD, FBD)
2.2 TDCi	08.2013 - 12.2018	74	100	2198
2.2 TDCi	08.2013 - 12.2018	92	125	2198
TRANSIT V363 Platform/Chassis (FED, FFD)
2.2 TDCi	08.2013 - 12.2018	74	100	2198
2.2 TDCi	08.2013 - 12.2018	92	125	2198
2.2 TDCi	08.2013 - 12.2018	114	155	2198
TRANSIT V363 Van (FCD, FDD)
2.2 TDCi	08.2013 - 12.2018	74	100	2198
2.2 TDCi	08.2013 - 12.2018	92	125	2198
2.2 TDCi	08.2013 - 12.2018	114	155	2198
TRANSIT Van (FA_ _)
2.2 TDCi	04.2006 - 08.2014	63	85	2198
2.2 TDCi	04.2006 - 08.2014	81	110	2198
2.2 TDCi	04.2006 - 08.2014	96	130	2198
2.2 TDCi	10.2007 - 08.2014	103	140	2198
2.2 TDCi	10.2008 - 08.2014	85	115	2198
2.2 TDCi	10.2011 - 08.2014	74	100	2198
PEUGEOT
BOXER Bus
TYPE	CONSTRUCTION YEAR	KW	HP	CC
2.2 HDi 100	from 04.2006	74	101	2198
2.2 HDi 110	from 03.2011	81	110	2198
2.2 HDi 120	from 04.2006	88	120	2198
2.2 HDi 130	from 03.2011	96	131	2198
2.2 HDi 150	from 03.2011	110	150	2198
BOXER Platform/Chassis
2.2 HDi 100	from 04.2006	74	101	2198
2.2 HDi 110	from 03.2011	81	110	2198
2.2 HDi 120	from 04.2006	88	120	2198
2.2 HDi 130	from 03.2011	96	131	2198
2.2 HDi 150	from 03.2011	110	150	2198
BOXER Van
2.2 HDi 100	from 04.2006	74	101	2198
2.2 HDi 110	from 03.2011	81	110	2198
2.2 HDi 120	from 04.2006	88	120	2198
2.2 HDi 130	from 03.2011	96	131	2198
2.2 HDi 150	from 03 .2011	110	150	2198

Compatibility
